Ubuntu桌面美化(二)侧边实时数据监测工具conky

安装conky

sudo apt-get install conky-all

修改配置

在/home目录下创建“.conkyrc”文件

编辑文件内容

# set to yes if you want Conky to be forked in the background
background no
cpu_avg_samples 2
net_avg_samples 2
out_to_console no
# X font when Xft is disabled, you can pick one with program xfontsel
#font 7x12
#font 6x10
#font 7x13
#font 8x13
#font 7x12
#font *mintsmild.se*
#font -*-*-*-*-*-*-34-*-*-*-*-*-*-*
#font -artwiz-snap-normal-r-normal-*-*-100-*-*-p-*-iso8859-1
# Use Xft?
use_xft yes
# Xft font when Xft is enabled
xftfont Sans:size=11
own_window_argb_visual yes
#own_window_colour hotpink
# Text alpha when using Xft
xftalpha 0.8
# on_bottom yes
# mail spool
# mail_spool $MAIL
# Update interval in seconds
update_interval 1
# Create own window instead of using desktop (required in nautilus)
own_window yes
own_window_transparent yes
own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager
#own_window_type override
own_window_type desktop
# Use double buffering (reduces flicker, may not work for everyone)
double_buffer yes
# Minimum size of text area
minimum_size 260 5
maximum_width 400
# Draw shades?
draw_shades no
# Draw outlines?
draw_outline no
# Draw borders around text
draw_borders no
# Stippled borders?
stippled_borders no
# border margins
# border_margin 4
# border width
border_width 1
# Default colors and also border colors
default_color white
default_shade_color white
default_outline_color white
# Text alignment, other possible values are commented
#alignment top_left
#minimum_size 10 10
gap_x 10
gap_y 35
alignment top_right
#alignment bottom_left
#alignment bottom_right
# Gap between borders of screen and text
# Add spaces to keep things from moving about?  This only affects
# certain objects.
use_spacer none
# Subtract file system buffers from used memory?
no_buffers yes
# set to yes if you want all text to be in uppercase
uppercase no
# none, xmms, bmp, audacious, infopipe (default is none)
# xmms_player bmp

TEXT
${color #0277BD}SYSTEM ${hr 1}
#Time:$alignr${time %Y.%m.%d}$alignc   ${time %H:%M:%S}$alignr   Week:${time %w}
Hostname: $alignr$nodename
Kernel: $alignr$kernel
Machine:$alignr$machine
Uptime: $alignr$uptime
Temp: ${alignr}${acpitemp} °C
Battery:$alignr${battery BAT0}
#Battery:$alignr${battery_percent BAT0}%
###############
${color #006064}NETWORK ${hr 1}
IP:${addr wlp5s0}
GateWay:$gw_ip
Down ${downspeed wlp5s0} /s ${alignr}Up ${upspeed wlp5s0} /s
#${downspeedgraph wlp5s0 25,107} ${alignr}${upspeedgraph wlp5s0 25,107}
Total ${totaldown wlp5s0} ${alignr}Total ${totalup wlp5s0}
#############
${color #26C6DA}MEMORY ${hr 1}
Ram ${alignr}$mem / $memmax ($memperc%)
${membar 4}
swap ${alignr}$swap / $swapmax ($swapperc%)
${swapbar 4}
Highest MEM $alignr MEM%
${top_mem name 1}$alignr ${top_mem mem 1}
${top_mem name 2}$alignr ${top_mem mem 2}
${top_mem name 3}$alignr ${top_mem mem 3}
##############
${color #FF9800}CPU ${hr 1}
Frequency: ${alignr}${freq dyn} MHz
Processes: ${alignr}$processes ($running_processes running)
Load: ${alignr}$loadavg
CPU1 ${alignr}${cpu cpu1}%
${cpubar 4 cpu1}
CPU2 ${alignr}${cpu cpu2}%
${cpubar 4 cpu2}
Highest CPU $alignr CPU%
${top name 1}$alignr${top cpu 1}
${top name 2}$alignr${top cpu 2}
${top name 3}$alignr${top cpu 3}
##############
${color #00BFA5}FILE SYSTEM ${hr 1}
Disk I/O:$diskio
Root: ${alignr}${fs_free /} / ${fs_size /}
${fs_bar 4 /}
Home: ${alignr}${fs_free /home} / ${fs_size /home}
${fs_bar 4 /home}
#############

保存配置并退出

设置开机自启动脚本,终端执行

gnome-session-properties

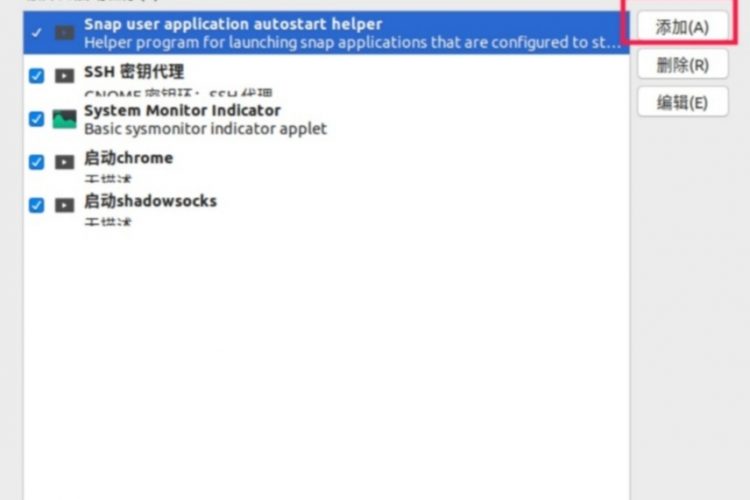

弹出 启动应用程序首选项 菜单

填入名称(随意)和命令(conky -d)

保存重启即可
